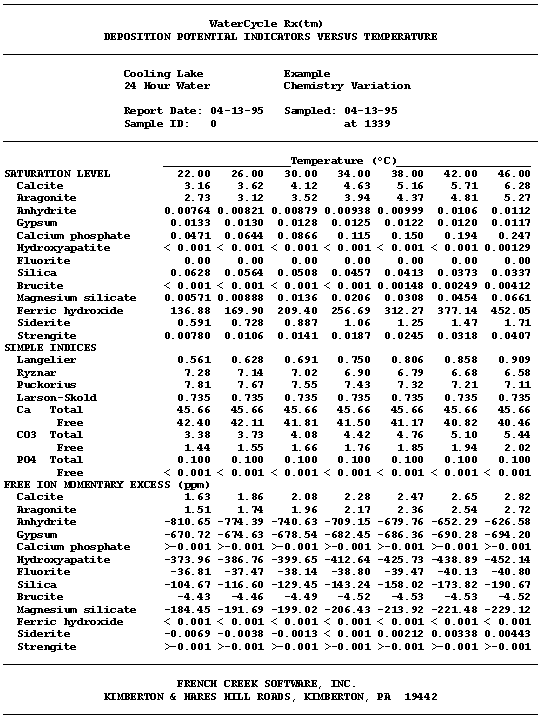

Deposition Potential Indicators Versus Temperature
Water Chemistry Versus pH

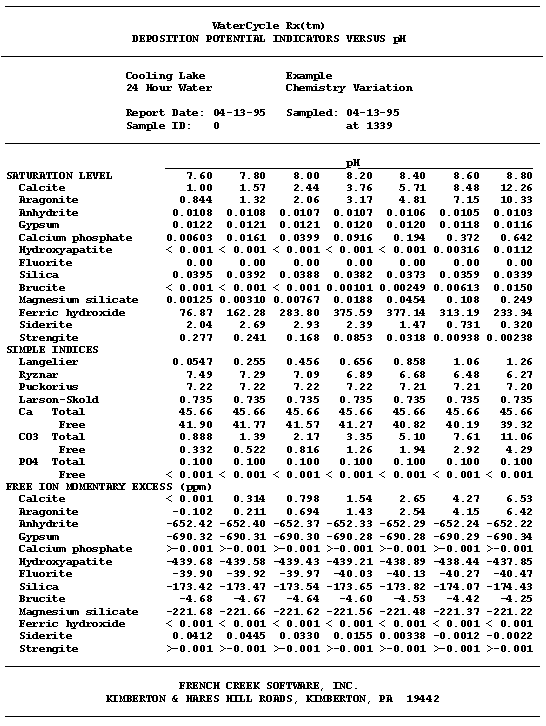

Deposition Potential Indicators Versus pH

NOTE: Tables print at the resolution of your printer. Resolution has been sacrificed in this web page to accomodate lower resolution monitors. These printouts were generated at 75 dpi rather than the 300 dpi to 600 dpi common for Laser and Ink Jet printers to allow them to fit on the screen of a standard VGA monitor.

WaterCycle R_x series add a dosage line to the Water Chemistry Tables when a product or corrosion model is selected.

COOLING TOWER PRINTOUTS

The Makeup Water Table Summarizes The Water Chemistry Input

[Top]

The Makeup Water Deposition Potential Indicators Table Summarizes Scale Indices Calculated For The Makeup Water

[Top]

The Recirculating Water Chemistry at Concentration Ratio Summarizes The Cycled Water Chemistry - Including Acid or Alkali Requirements When pH Control Is Active, Corrosion Rate Prediction If A Model Is Selected, And Dosages For A Treatment, When Selected - All Versus Concentration Ratio

[Top]

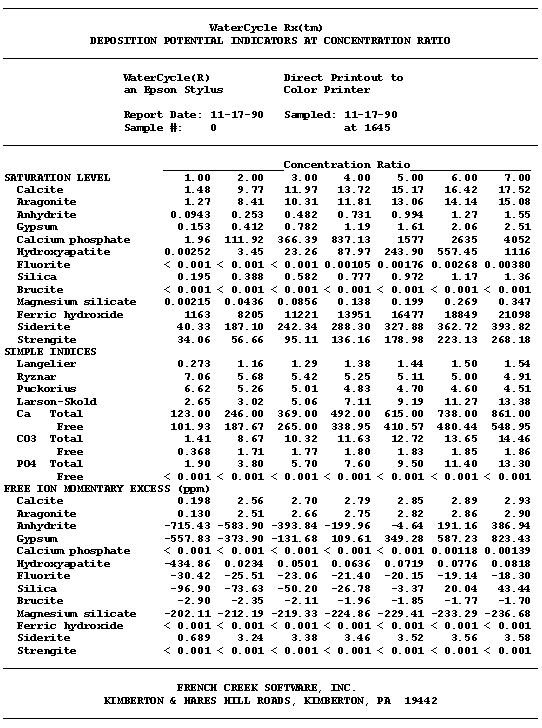

The Deposition Potential Indicators At Concentration Ratio Table Summarizes Scale Indices Calculated Versus The Concentration Ratio Range Selected. These Values Can Also Be Presented As 2D Graphs Versus Concentration Ratio.

[Top]

ONCE THROUGH PRINTOUTS

The Water Chemistry Input Table Summarizes The Source Water Analysis Input.
