Cooling Water
- About
  WaterCycle modeling software enables water treatment specialists to thoroughly model mineral scale potential over a narrow or broad operating range.

  French Creek modeling software offer extensive inhibitor modeling features, including custom formulation input. Read More »
Oilfield
- About
  DownHole SAT modeling software is a practical tool for modeling mineral scale potential, corrosion and inhibitor treatments in oilfield applications.

  Simulate single streams, injection wells and mixtures of up to one-dozen brines, using French Creek's intuitive interface and Visual Chemistry™ technique. Read More »
Reverse Osmosis
- About
  hyd-RO-dose modeling software gives treatment personnel an unbiased mineral scale and inhibitor modeling tool for reverse osmosis systems.

  Evaluate an entire operating range for 20+ scale forming species and select appropriate treatment for optimal recovery. Read More »
Municipal
- HyperLink
- About
  WatSIM software is a complete modeling tool for municipal water chemistry.

  Evaluate for 20+ scale forming species, Pb & Cu solubility, and appropriate treatments. Read More »
Water Reuse
- Water Reuse
- About
  Version 7 Suites enable water treatment personnel to model reuse for cooling tower blowdown, RO concentrate and most other streams.

  Using all new Copy/Paste analysis features, a user can seamlessly move analysis from application to application for mixing and reuse purposes. Read More »

Water Treatment Modeling Software

French Creek was founded by Janet & Robert J. Ferguson in 1989 to fill the void for field-ready, yet powerful, water treatment modeling software.

Celebrating Over
30 Years

WaterCycle® Cooling Water

WaterCycle

hyd-RO-dose® Reverse Osmosis

hyd-RO-dose

MineSAT™ Mining & Process

DownHole SAT™ Oilfield Operations

The French Creek Mission

Popularizing the daily use of advanced physical chemistry

French Creek Software, Inc. was founded in 1989 with the mission of providing software to aid the water treatment chemist in identifying and solving scale and corrosion related problems. The various French Creek program series address the specific needs of cooling water systems, reverses osmosis, oil field water treatment and potable water -- as well as water reuse.

Within these application specific series, version are available for field specialists to assist in selecting and optimizing treatments; for the formulator developing inhibitor blends for specific applications, and for the researcher, who wishes to model the performance of an inhibitor package.

Typical Simulations
Calcium Carbonate
Calcite
Aragonite
Witherite
Strontianite
Calcium oxalate
Anhydrite
Gypsum
Barite
Celestite
Tricalcium phosphate
Hydroxyapatite
Calcium pyrophosphate
Amorphous silica
Fluorite
Brucite
Magnesium silicate (stoichiometric)
Ferric hydroxide
Siderite
Strengite
Halite
Thenardite
Zinc hydroxide
Zinc carbonate
Zinc phosphate
Zinc polyphosphate

Calculation Engine

Ion Association Model

French Creek modeling applications apply a complex approach for modeling mineral scale, but with a friendly software interface.

A typical French Creek program simultaneously models 18+ saturation levels and their interactions. Each saturation ratio calculated compares hundreds of possible ion pair combinations, finding the most likely distribution of species.

The use of ion pairing to estimate the free concentrations of reactants overcomes several of the major shortcomings of traditional indices. Indices such as LSI correct activity coefficients for ionic strength based upon the total dissolved solids. They do not account for "common ion" effects. Common ion effects increase the apparent solubility of a compound by reducing the concentration of reactants available.

The end result is a transportable, reliable means of predicting mineral scale formation.

Read More in the Online Library »

Interface

Using Any Analytical Units

Water Chemistry Input
Collecting water analysis from several laboratories or formats? French Creek users can easily change analytical units on the fly to match original reports or to better suit a given audience.

Copy/Paste Feature
French Creek users can enter an analysis to be modeled as a single source, or quickly copy/paste it to be mixed with up to 12 total streams.

Water Reuse
Water Reuse Suites include WaterCycle - for cooling water modeling, hyd-RO-dose - for reverse osmosis, and a mixing program: DownHole SAT, MineSAT, or WatSIM.

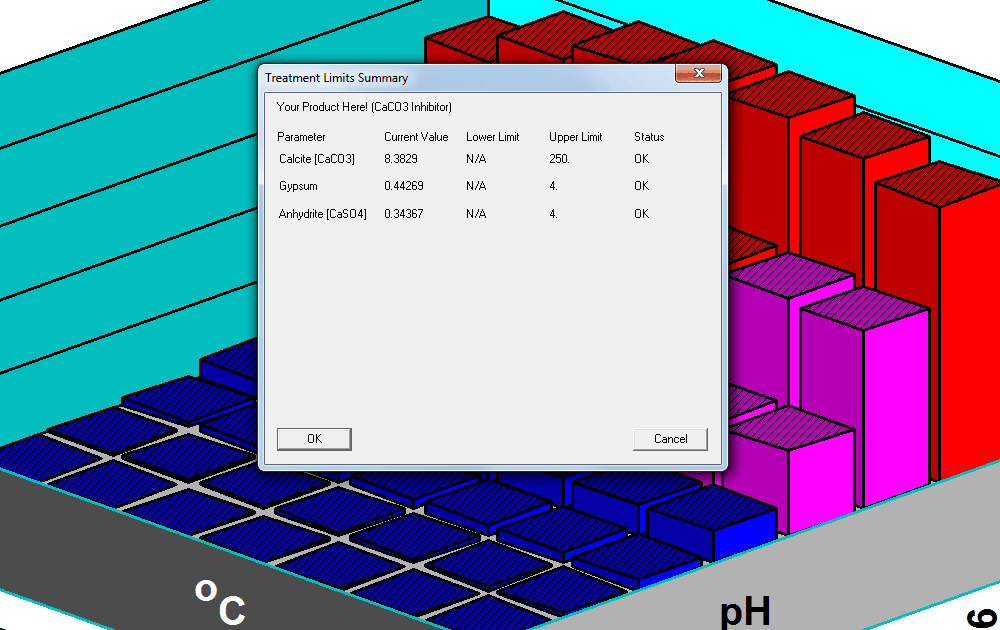

Inhibitor Modeling

Input & Model Custom Formulations

French Creek - Basic Edition licenses model scale with several pH control options. French Creek - Premium Editions enable users to model their own custom formulations. Model a treatments limits and suggested dosage.

Models included with Product Manager / Formulator Editions and Laboratory Editions include:

AA-AMPS
AMP
ATMP
HDTMP
HEDP

PAA
PPCA
SSMA
Plus Many Proprietary

Stunning Visual Aids

2D & 3D Color Coded Graphs

Easily Shareable
Graphs are easily copy/pasted or exported for use in Microsoft Office products or other programs.

Blue Good, Red Bad
French Creek users have a plethora of tools at their finger tips. On the fly, generate color coded 2D & 3D graphs that are quick and simple to interpret.

Graphs can easily be adjusted for any operating range. Even change the pH range or temperature range on an open graph.

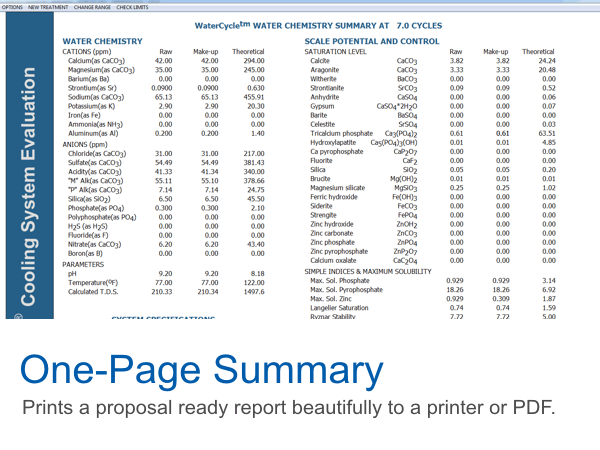

Thorough Mineral Scale Potential Modeling

Reports Featuring 20+ Scale Species & Indexes

Generate pages of predictive modeling data. Changing the pH or temperature range of a report takes a few clicks.

Reports are printer/PDF ready.

WaterCycle® Cooling Water

WaterCycle

hyd-RO-dose® Reverse Osmosis

hyd-RO-dose

MineSAT™ Mining & Process

DownHole SAT™ Oilfield Operations
